FONDECYT de Iniciación 11220530: Model uncertainty in earthquake performance assessment

← All research projects

Quantification of Incremental Model Uncertainty in Earthquake Performance Assessment through Multi-Fidelity Simulation and Bayesian Inference

FONDECYT de Iniciación 11220530 · ANID (Chile) · Principal Investigator: José A. Abell · Universidad de los Andes · 2022–2025 · completed

Motivation

How much does the way we model a building, its soil and the incoming earthquake change the response we predict? This project quantified that incremental model uncertainty by comparing models of increasing physical fidelity against a high-fidelity reference, for reinforced concrete buildings in Santiago, Chile, threatened by the San Ramón Fault, a shallow crustal fault running along the city's eastern edge.

Shallow crustal earthquakes are rare, so they're poorly represented in recorded data and in current risk estimates, but they can be highly destructive near the fault. That makes them a natural target for physics-based simulation.

What we did

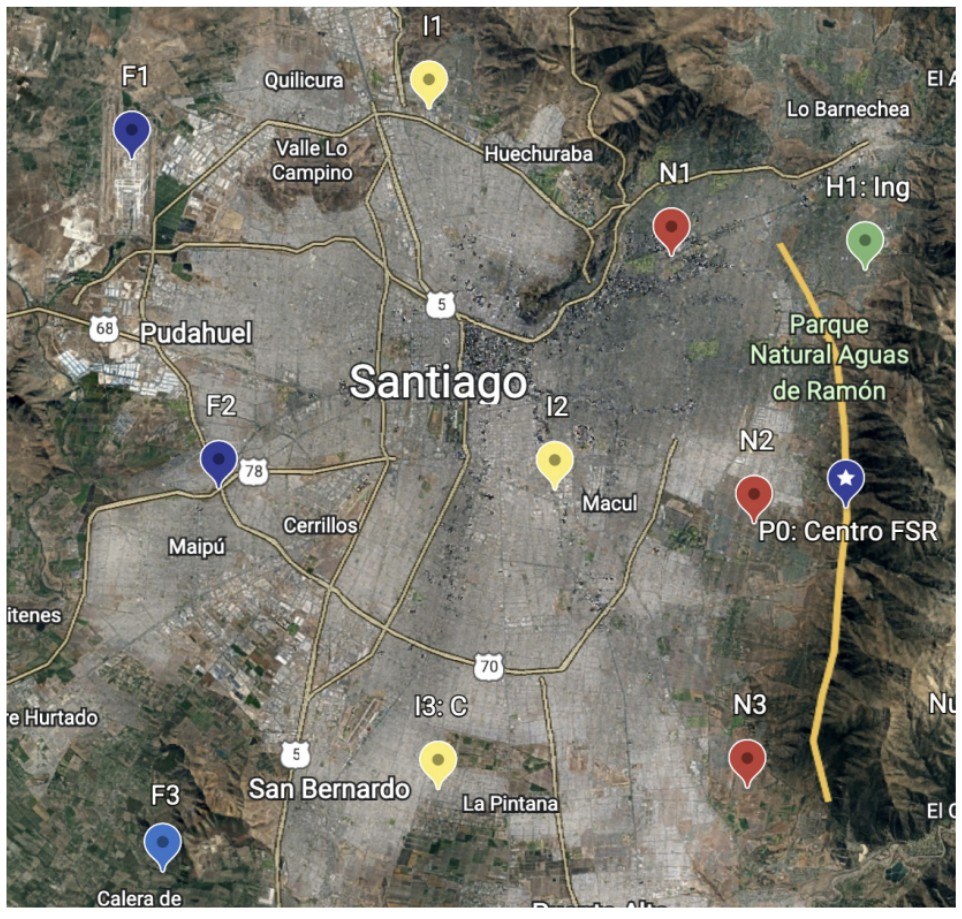

Study sites in the Santiago basin and the San Ramón Fault trace

  • Earthquake scenarios. High-resolution rupture models of a magnitude 6.7 event on the San Ramón Fault, combined with wave-propagation simulations using ShakerMaker, to estimate ground motions at sites across the Santiago basin.
  • A large simulated ground-motion database. About 327 GB of synthetic motions, computed over three months on high-performance computing resources, one of the most detailed numerical efforts to model seismic hazard in the Santiago basin.
  • Buildings at several levels of fidelity. Two reinforced concrete buildings (an existing building on the fault's hanging wall, and one representative of Chilean practice) analyzed in OpenSees with fixed-base, plane-wave and domain reduction method (DRM) models.
  • Statistics of the differences. A similarity score to quantify how modeling simplifications change the predicted engineering demand parameters.

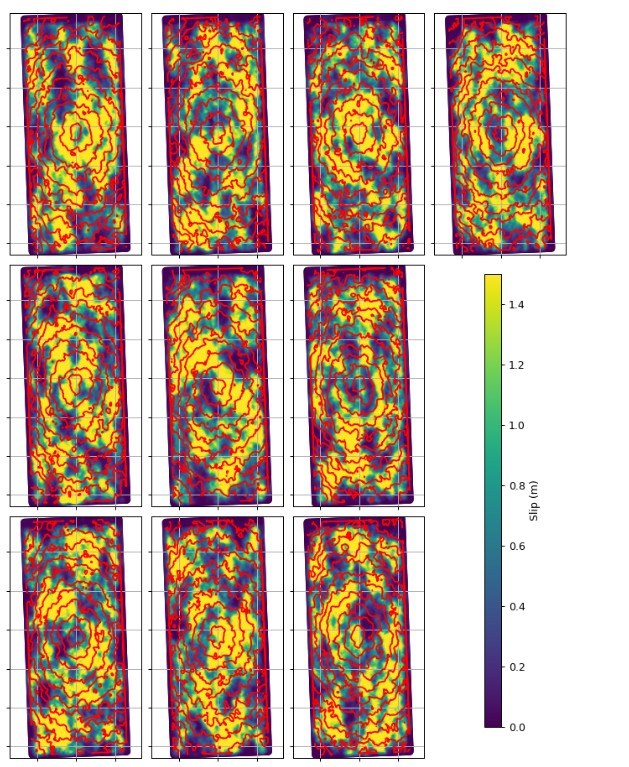

Ten realizations of slip on the San Ramón Fault rupture

Ten realizations of fault slip for the San Ramón Fault scenario.

Key findings

  • Modeling simplifications significantly change the predicted structural response.
  • Fixed-base models were the least reliable, introducing substantial bias and uncertainty.
  • Plane-wave models came much closer to the DRM reference, but missed some high-frequency effects.
  • The modeling effort needed depends on which response quantity matters, so in some situations cheaper models are good enough.

Evolution of damage in a building model: fixed-base vs DRM

Damage evolution in the walls of the same building, modeled as fixed-base (top) and with DRM input (bottom).

Publications

  • A. Hurtado Valdés, E. Torres, G. Camata, M. Petracca, J. G. F. Crempien, J. A. Abell. Impact of Soil–Structure Interaction Modeling Simplifications and Structural Nonlinearity on Uncertainty in EDPs: A Case Study on an Existing RC Building in Santiago. Earthquake Engineering & Structural Dynamics 54(8), 2062–2083, 2025. doi:10.1002/eqe.4340
  • A. Hurtado, T. Vergara, E. Torres, J. A. Abell. Importance of detailed modeling of near-field seismic wave complexity in the estimation of earthquake response of reinforced-concrete buildings. World Conference on Earthquake Engineering, 2024.

More on the Publications page. This work continues in the FONDECYT Regular 1261870 project.
